86 Type Square Wireless No Touch Switch Pad

86 Type Square Wireless No Touch Switch Pad

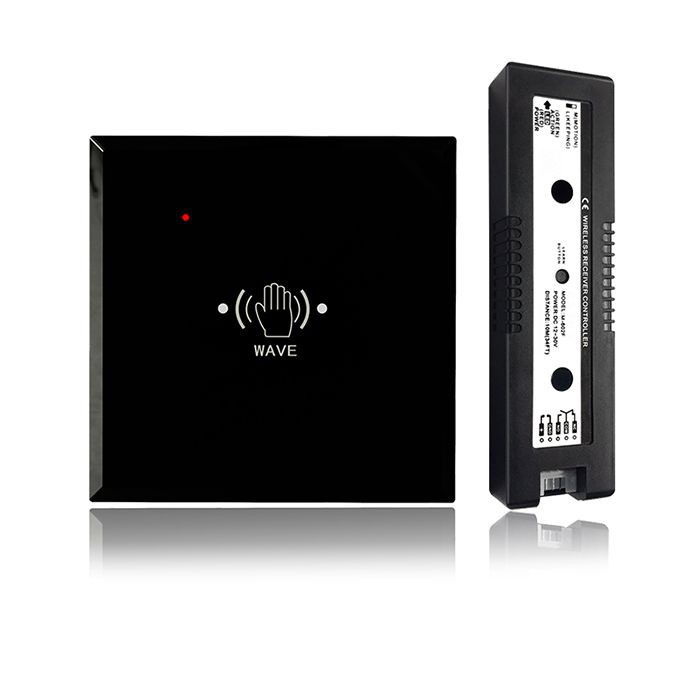

Wireless touchless switch used for automatic door, 86mm*86mm panel size, with stylish and innovative design. Surface and concealed installation are optional, it is widely used for smart home, office, airport, hospital etc.

Send Inquiry Chat Now

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

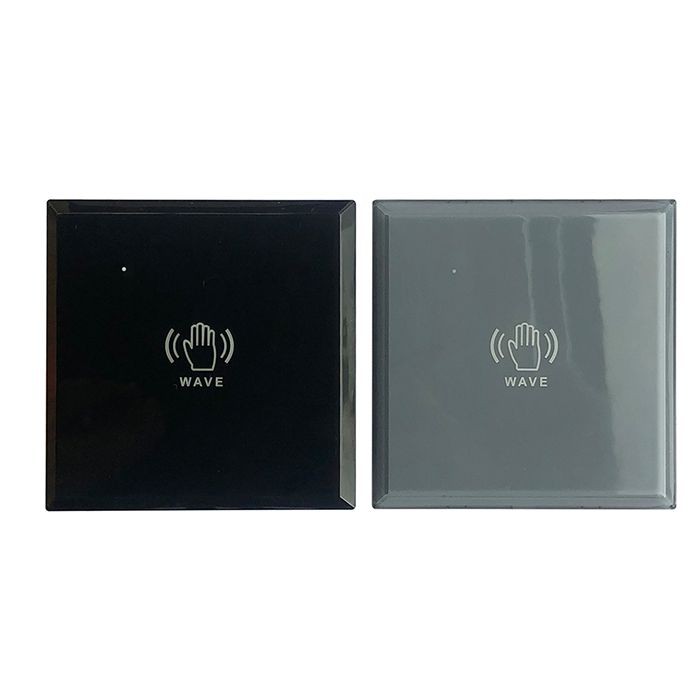

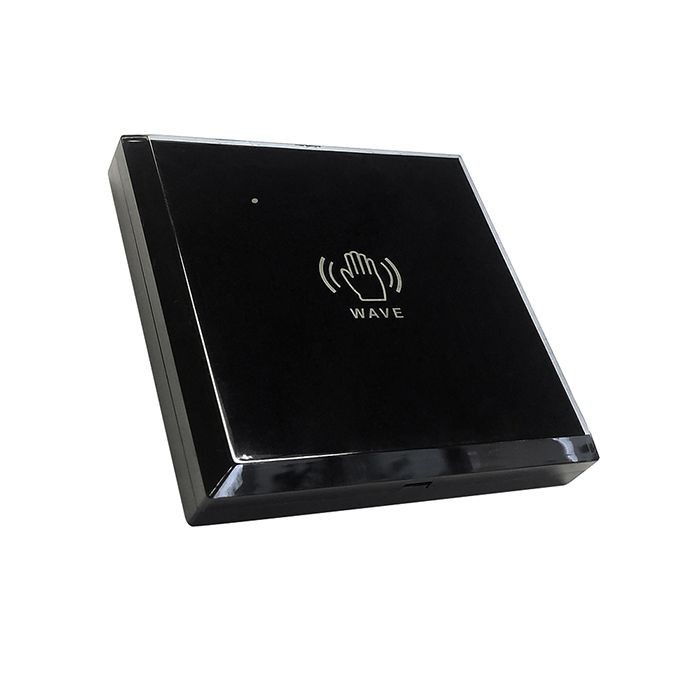

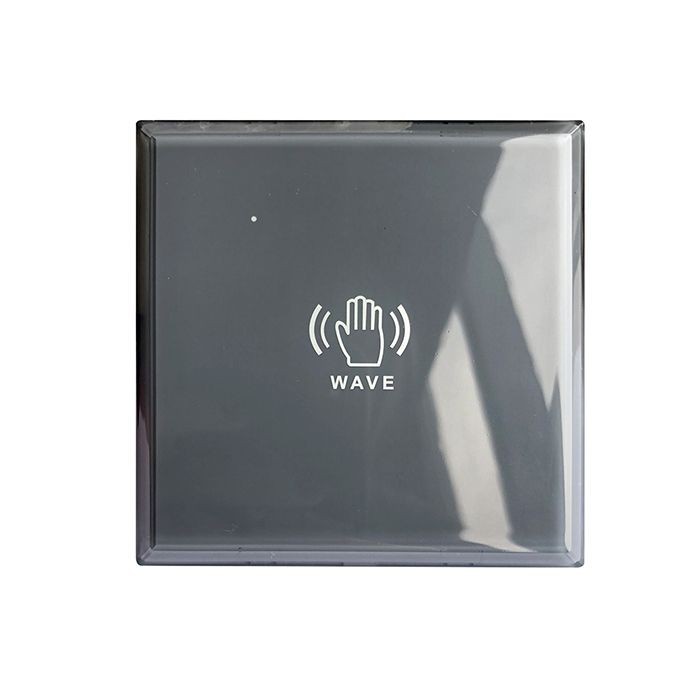

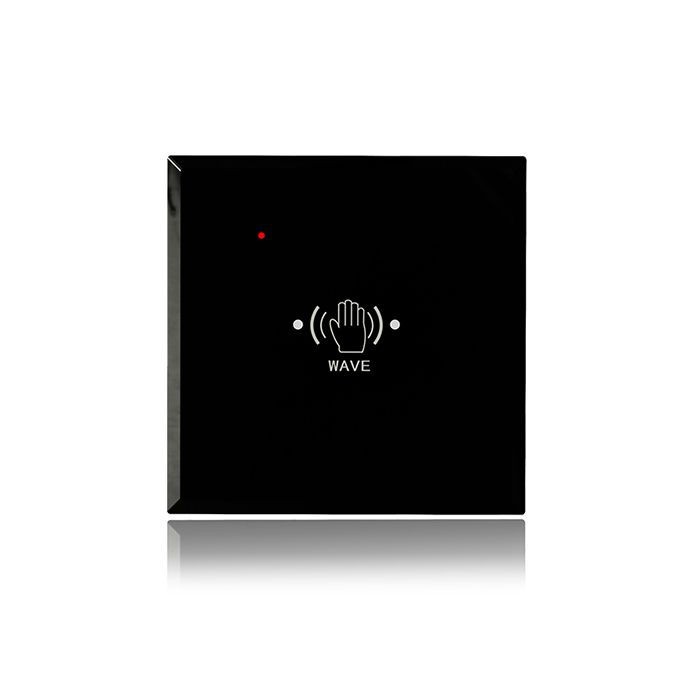

86 type square wireless no touch switch pad

2(001)

Overall characteristics

1. Standard 86-type switch panel, wireless design, installation without wiring installation is more flexible.

2. The panel adopts laser engraving technology,with backlight display, fashionable

3. Using 2.4G wireless communication technology, the frequency consistency is good, and the stability of wireless transceiver is high

4. The transmitter adopts low-power transmission technology, which has along transmission distance, saves power and saves battery life.

5. The receiver adopts self-learning code matching.which is convenient for customers to add induction switches at any time

6. The receiver's wide voltage input design, 12 30V DC power input is effective.

7. When the remote control is valid, the blue light is on, you can con firm whether the switch is valid.

8. Induction adopts infrared modulation and demodulation, not easy to be disturbed and misjudged.

9. Non-contact induction by hand or reflective object, clean and hygienic

10. Induction distance is 3-30cm adjustable , could be adjusted for different occasions

11. High sensitivity infrared tube, timely and convenient induction

5(001)

Product specification

Power supply (wireless receiver)	DC12～30V
Action current	62mA(DC12V power supply)
Main contact capacity (wireless receiver)	1A 24VDC
Contact holding time (wireless receiver)	1.5S
Standby current (transmitter)	≤80μA
Transmitting current (transmitter)	12.55mA
Battery life (transmitter)	200 times/day, can use 220 days
Receiver sensitivity	-95dbm
Launch distance:	no barrier distance 30M
Appearance size (transmitter)	86mm×86mm
sensing distance	3-30cm
Appearance size (receiver)	110mm（L）×30mm（W）×15mm（H）
